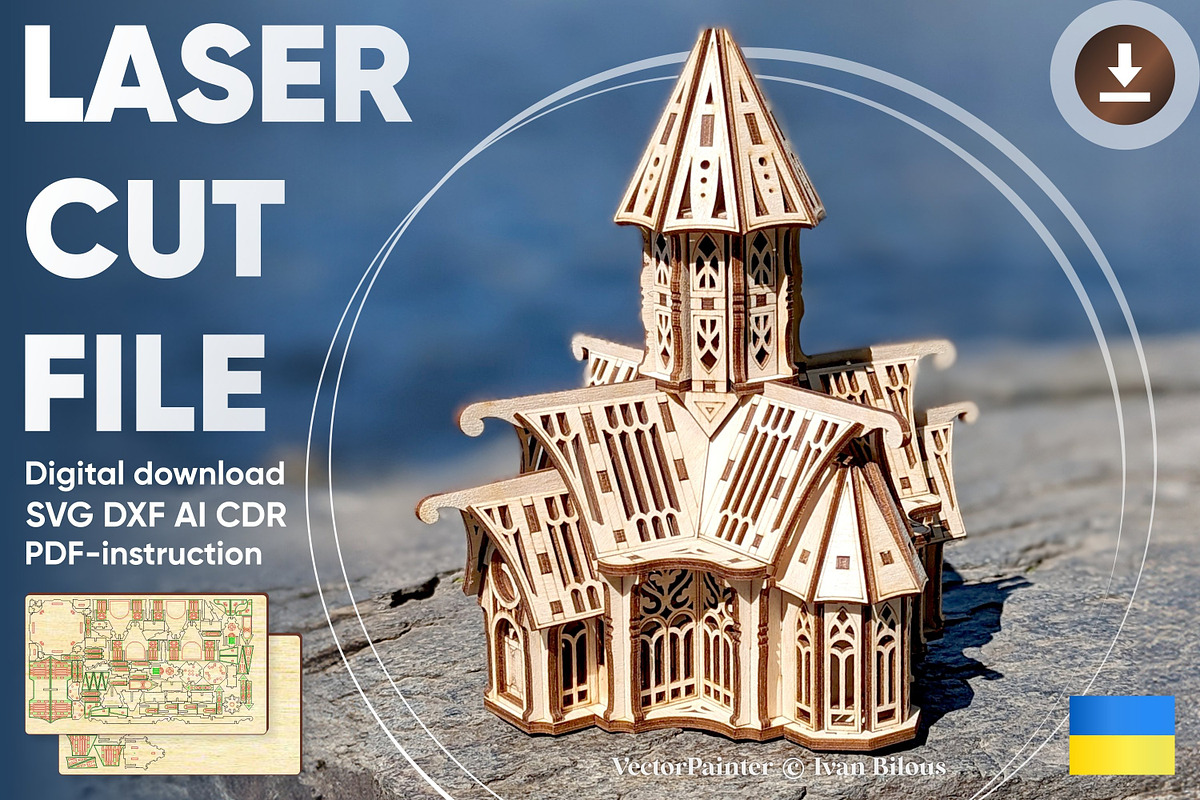

Gothic Castle Church - Laser Project

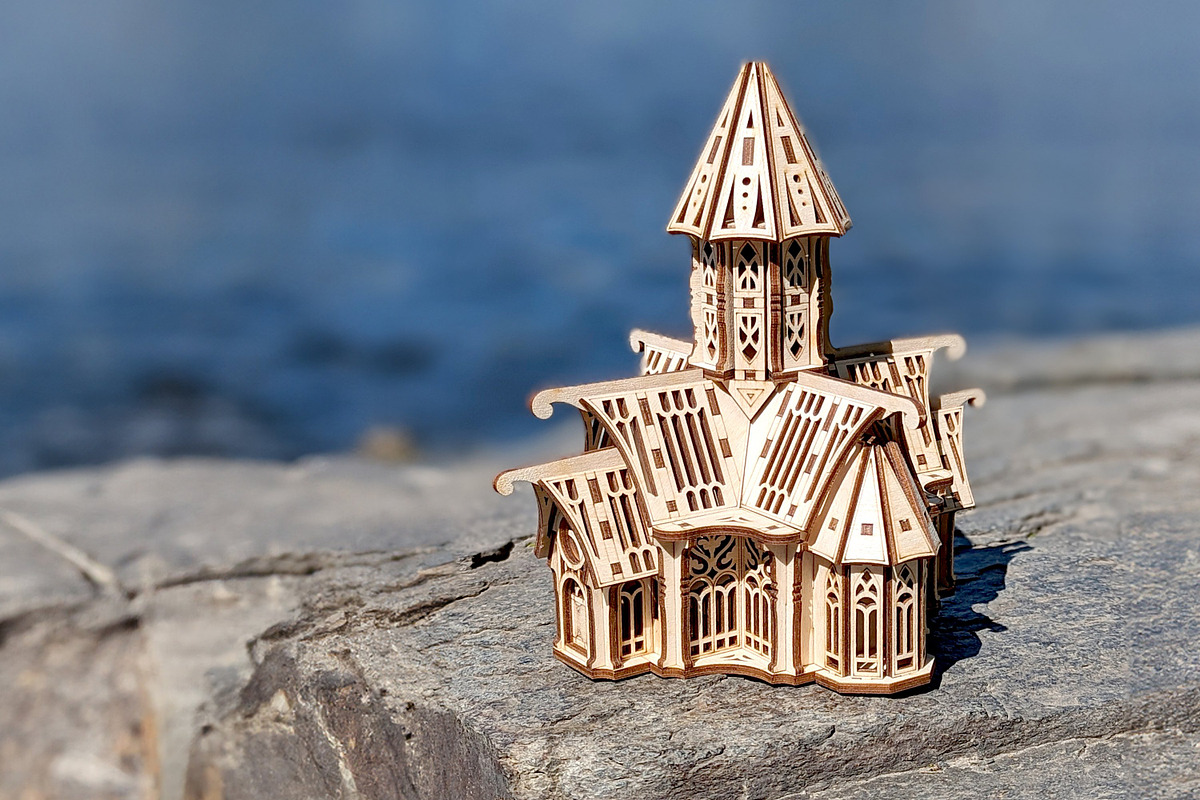

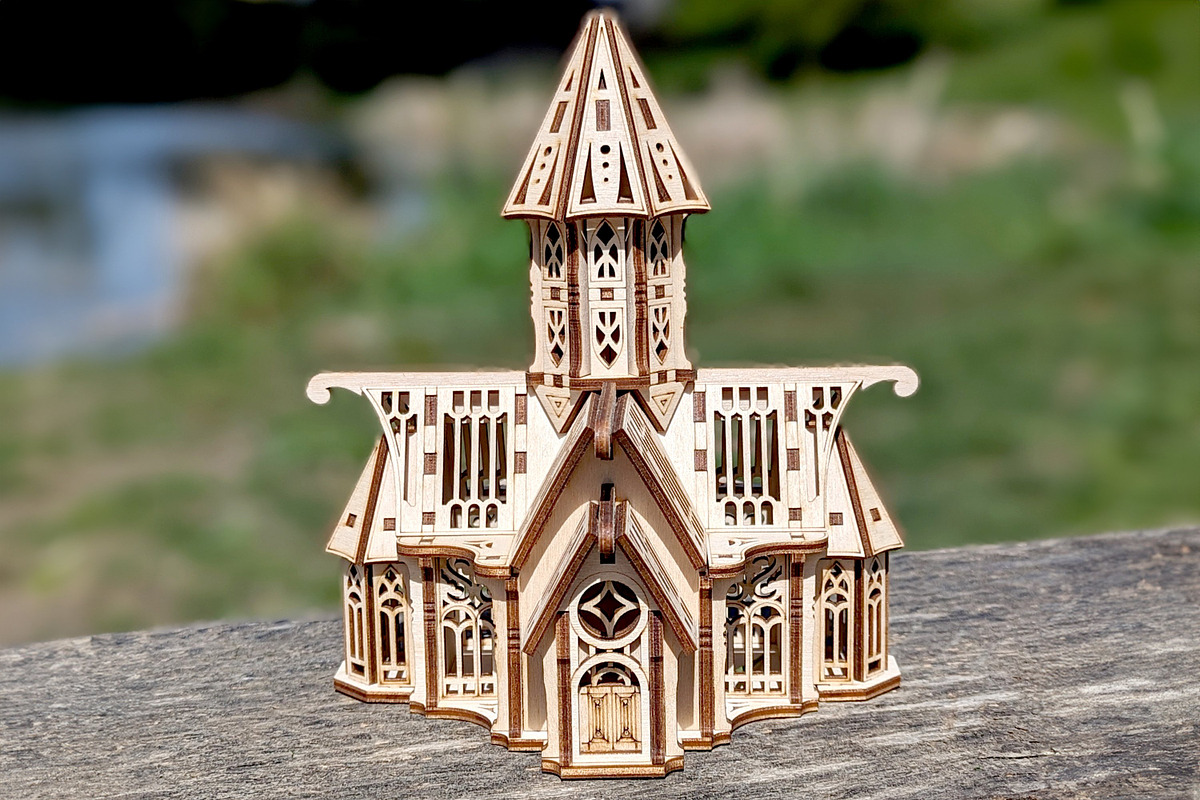

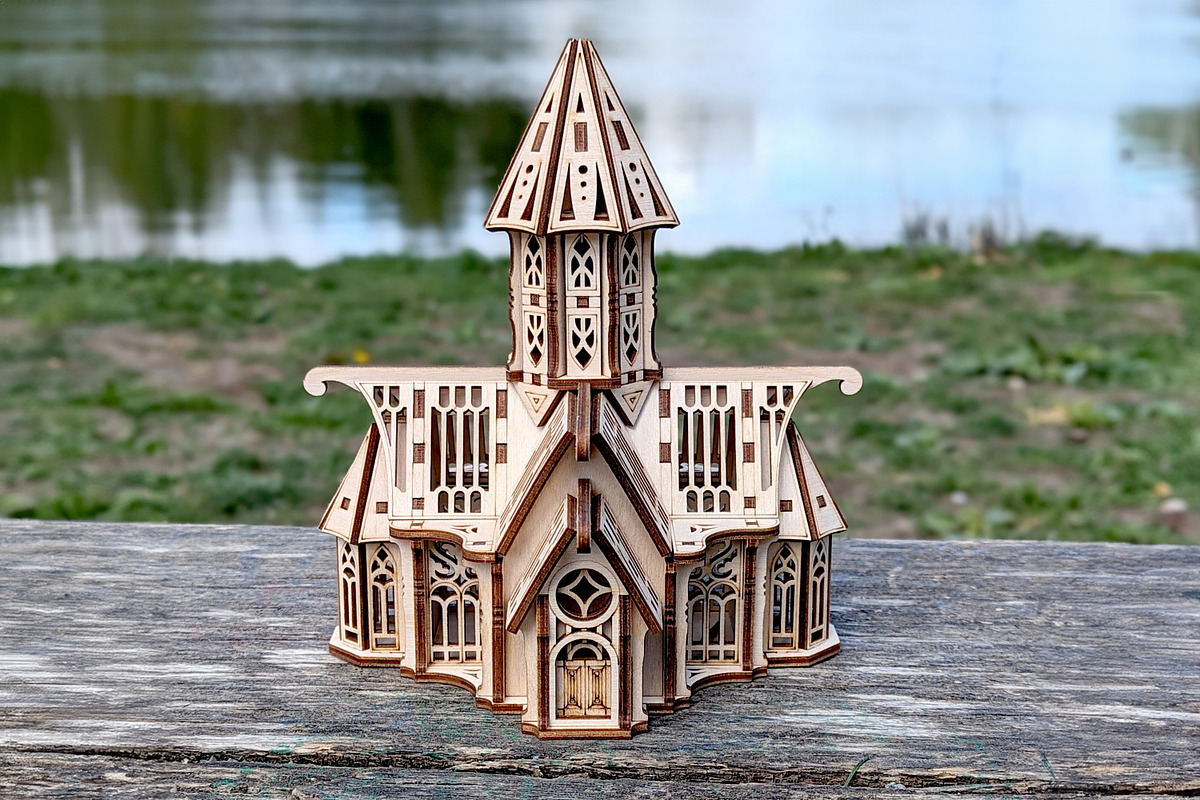

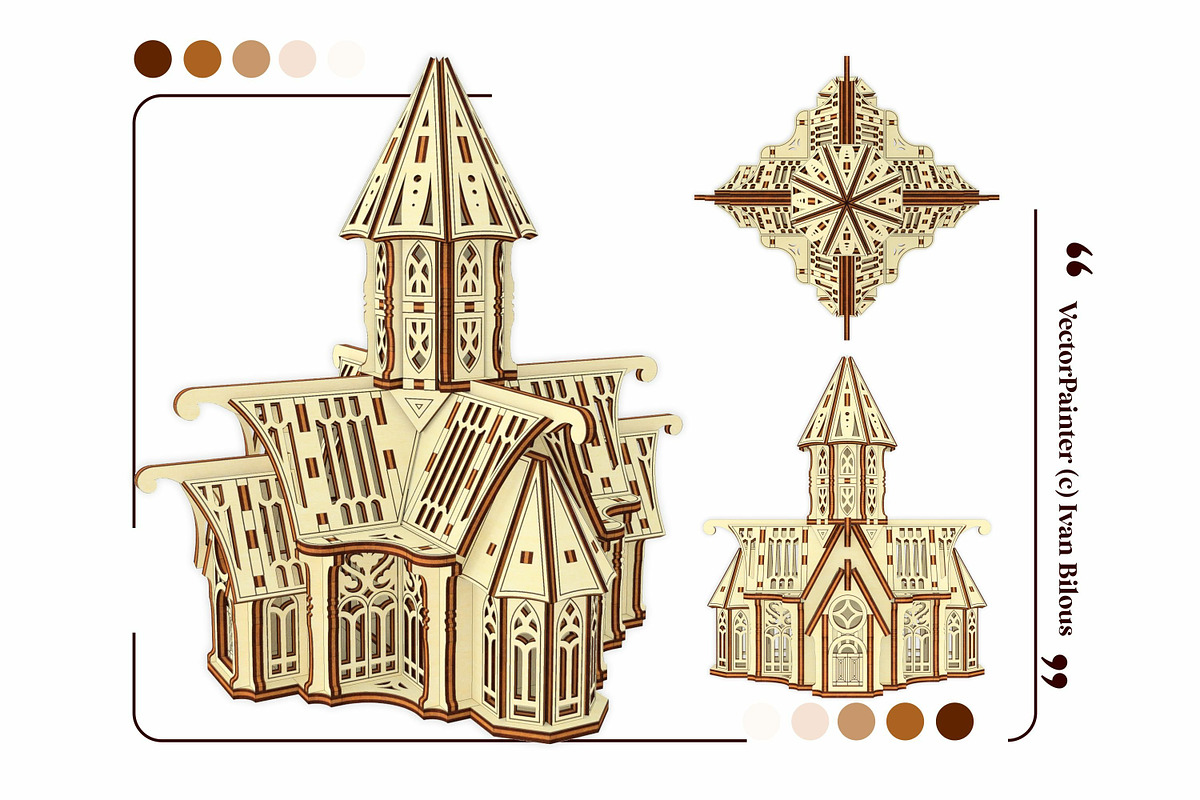

This Gothic Castle model embodies the grandeur and mystique of medieval architecture, featuring intricate details that transport you to a bygone era of knights and nobility. Ideal for enthusiasts of medieval history, collectors of architectural models, or those with a penchant for fantasy decor, it serves as a captivating centerpiece for shelves, desks, or display cases.

🎨 Laser cut design "Gothic Castle" 🎨

DIGITAL FILE for laser cutting machine

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🤏Material thickness (versions of the files): 3 mm, 1/8'' (3.175 mm), 4 mm, 5 mm, 6 mm, 1/4'' (6.35 mm)

Level of assembly difficulty: ⚫⚫⚫⚪⚪

⚠️ Some parts are glue

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

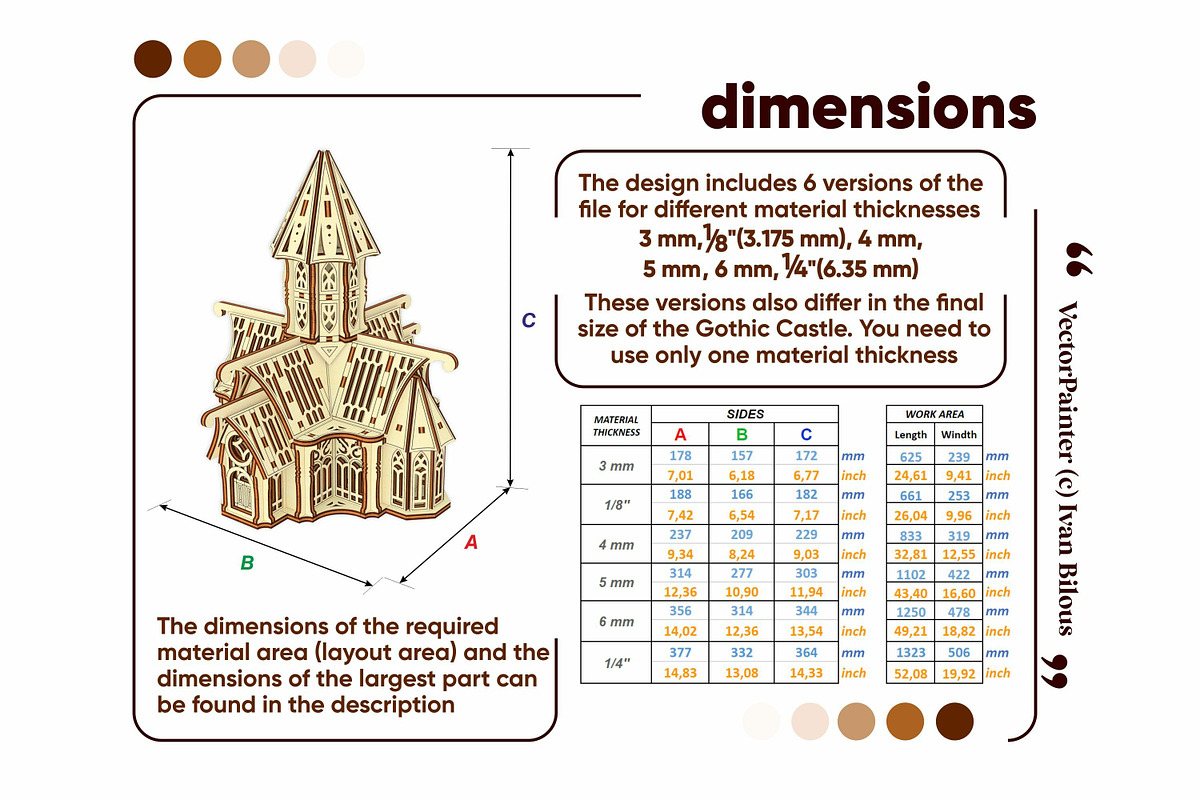

📏 Finished SIZE

3 mm thickness: 178 x 157 x 172 mm (7,01 x 6,18 x 6,77'')

1/8''(3.175mm) thickness: 188 x 166 x 182 mm (7,42 x 6,54 x 7,17'')

4 mm thickness: 237 x 209 x 229 mm (9,34 x 8,24 x 9,03'')

5 mm thickness: 314 x 277 x 303 mm (12,36 x 10,90 x 11,94'')

6 mm thickness: 356 x 314 x 344 mm (14,02 x 12,36 x 13,54'')

1/4''(6.35mm) thickness: 377 x 332 x 364 mm (14,83 x 13,08 x 14,33'')

📐WORK AREA - total area of wood required for cutting

3 mm thickness: 625 x 239 mm (24,61 x 9,41'')

1/8''(3.175mm) thickness: 661 x 253 mm (26,04 x 9,96'')

4 mm thickness: 833 x 319 mm (32,81 x 12,55'')

5 mm thickness: 1102 x 422 mm (43,40 x 16,60'')

6 mm thickness: 1250 x 478 mm (49,21 x 18,82'')

1/4''(6.35mm) thickness: 1323 x 506 mm (52,08 x 19,92'')

🟧 LARGEST PART

3 mm thickness: 107 x 107 mm (4,21 x 4,21'')

1/8''(3.175mm) thickness: 113 x 113 mm (4,46 x 4,46'')

4 mm thickness: 143 x 143 mm (5,62 x 5,62'')

5 mm thickness: 189 x 189 mm (7,43 x 7,43'')

6 mm thickness: 214 x 214 mm (8,43 x 8,43'')

1/4''(6.35mm) thickness: 226 x 226 mm (8,92 x 8,92'')

⚠️ If you are using wood whose thickness is not included in the design, you can easily scale the file.

1. Import a file that is thicker than the thickness of your wood.

2. Multiply the width and length of the file by your actual thickness and divide by the thickness of the wood in the file.

For example, your wood is 4.5 mm thick.

Import the file for 5 mm. Multiply the width and length of the imported file by 4.5 and divide by 5.

This will give you a 4.5 mm file.

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🛒WHAT YOU RECEIVE

🟢 ready made cutting files for 3 mm, 1/8'' (3.175 mm), 4mm, 5 mm, 6 mm, 1/4'' (6.35 mm) material thickness

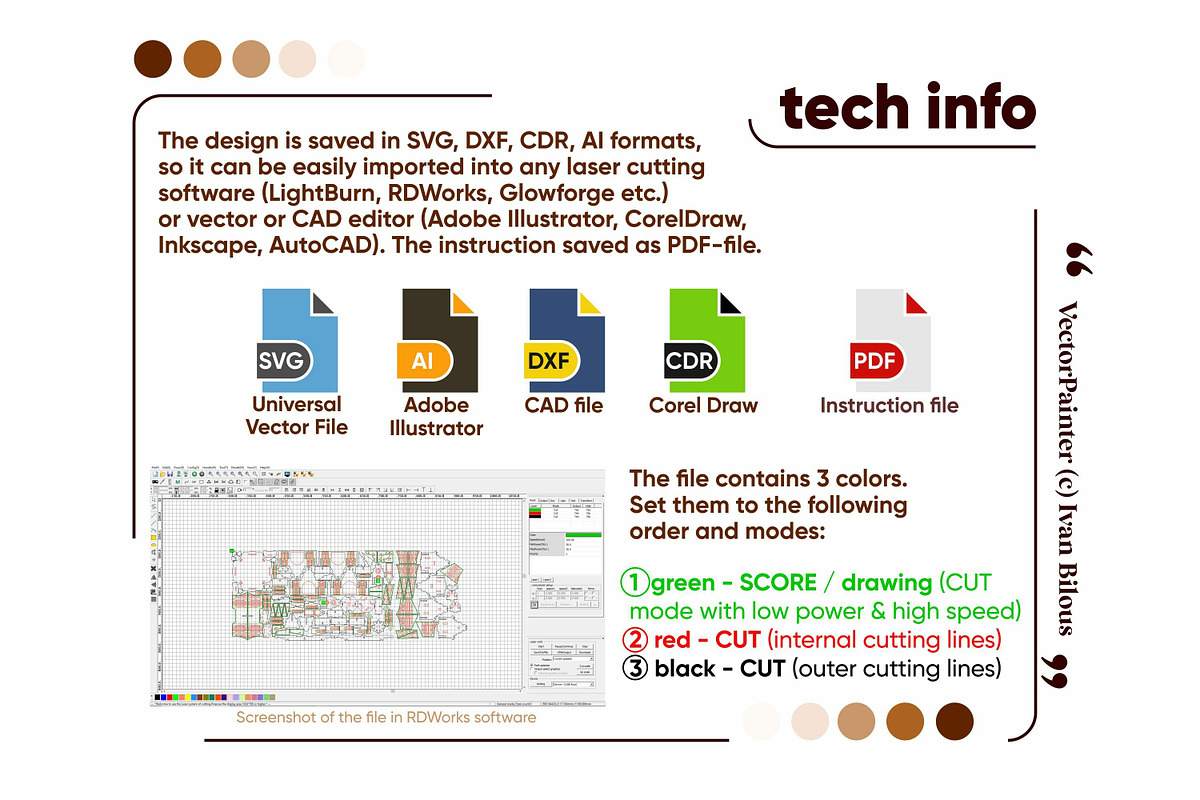

🟢 each file is saved in SVG, DXF, CDR, AI formats

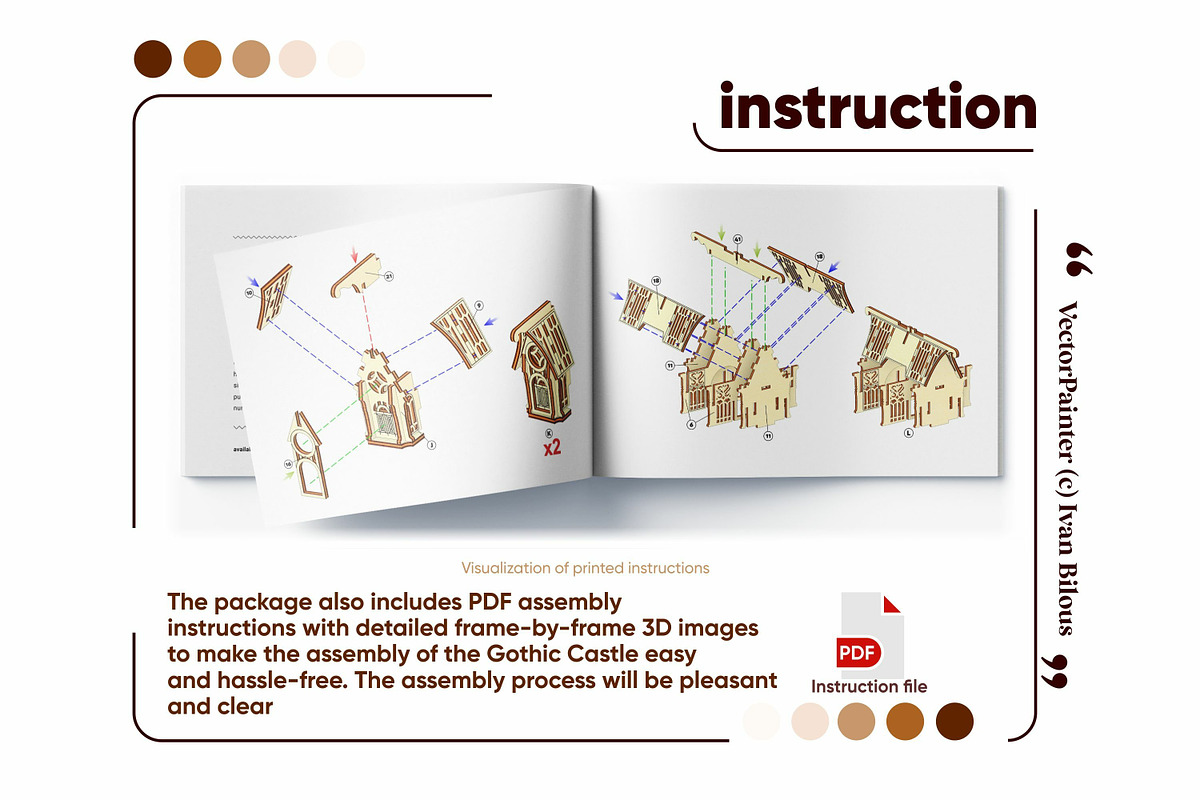

🟢 detailed PDF-instructions with 3D pictures

🟢 free support consultations and small adjustments

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

📋DETAILS

✅ These files are vector-based and compatible with all vector editors and laser cut software and CNC plasma cutting machine

(LightBurn, RDWorks, xTool, Glowforge software, CorelDraw, Adobe Illustrator, Inkscape etc)

📥This is an Instant Digital Download. The files will be available for download immediately after purchase

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

📧Feel free to contact me if you have any questions 😊 I always happy to help you
