MCG PerVertInfo
About the Product
REQUIREMENTS: Max 2016 + SP2/3 + Extension 1/2, Max 2017
Installation: Scripting, Install Max Creation Graph...

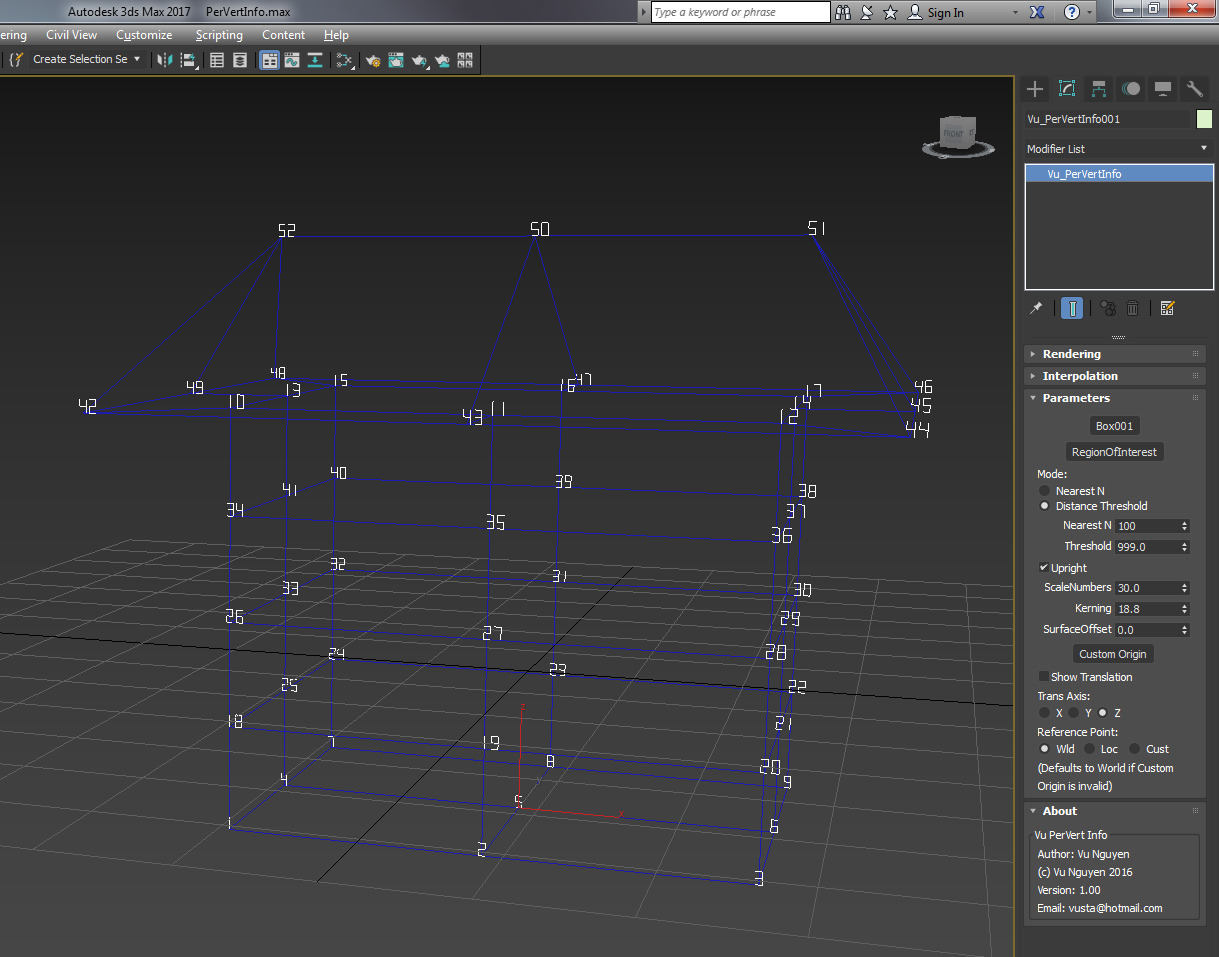

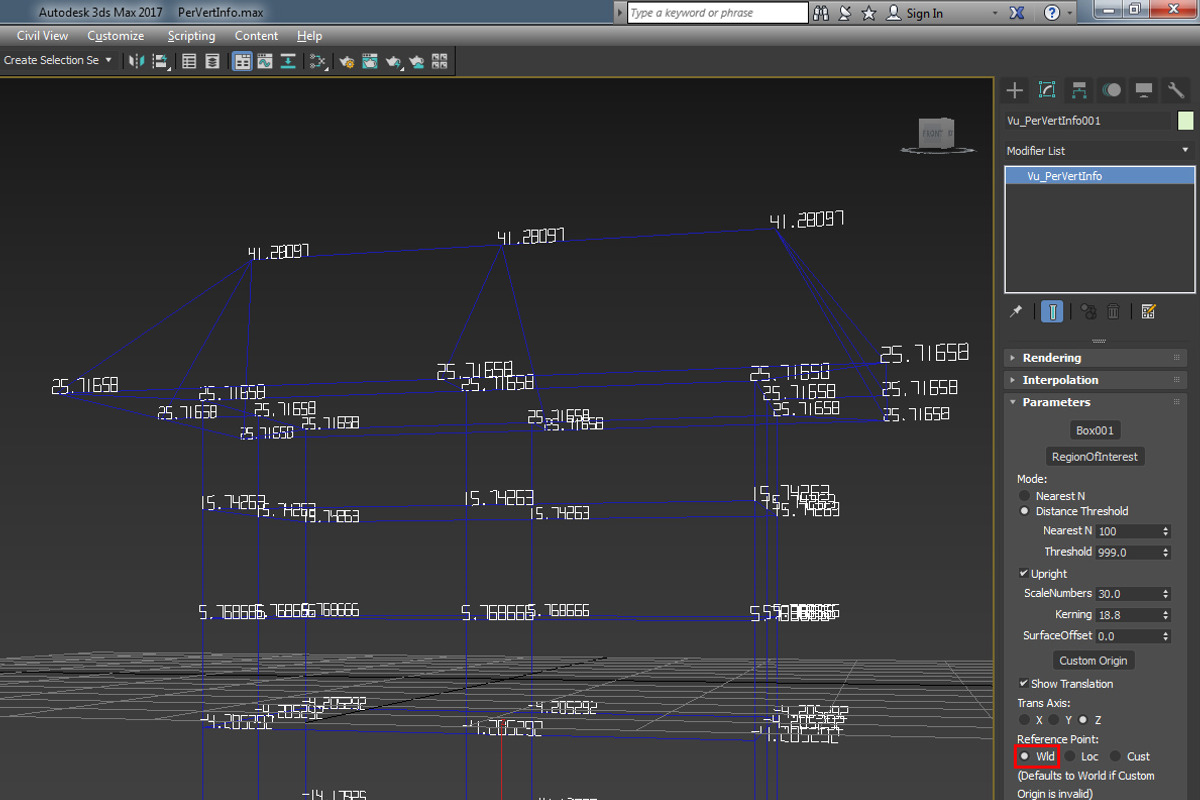

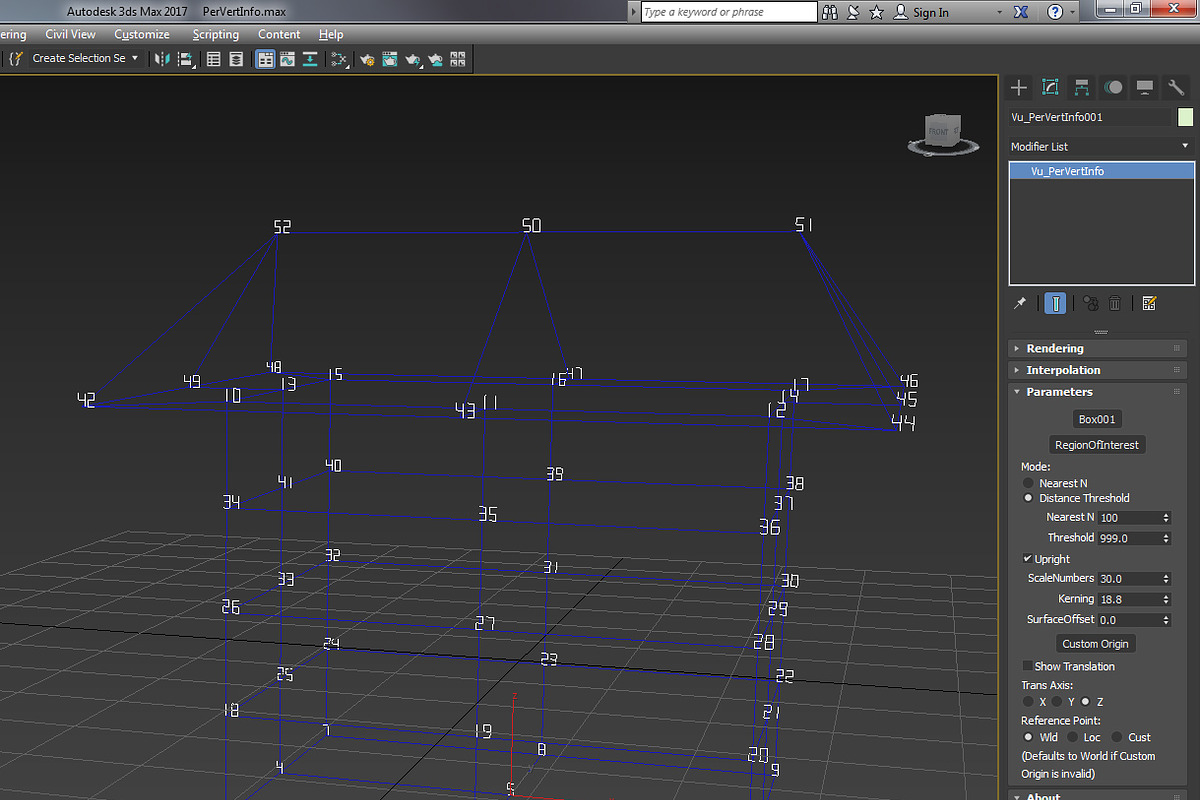

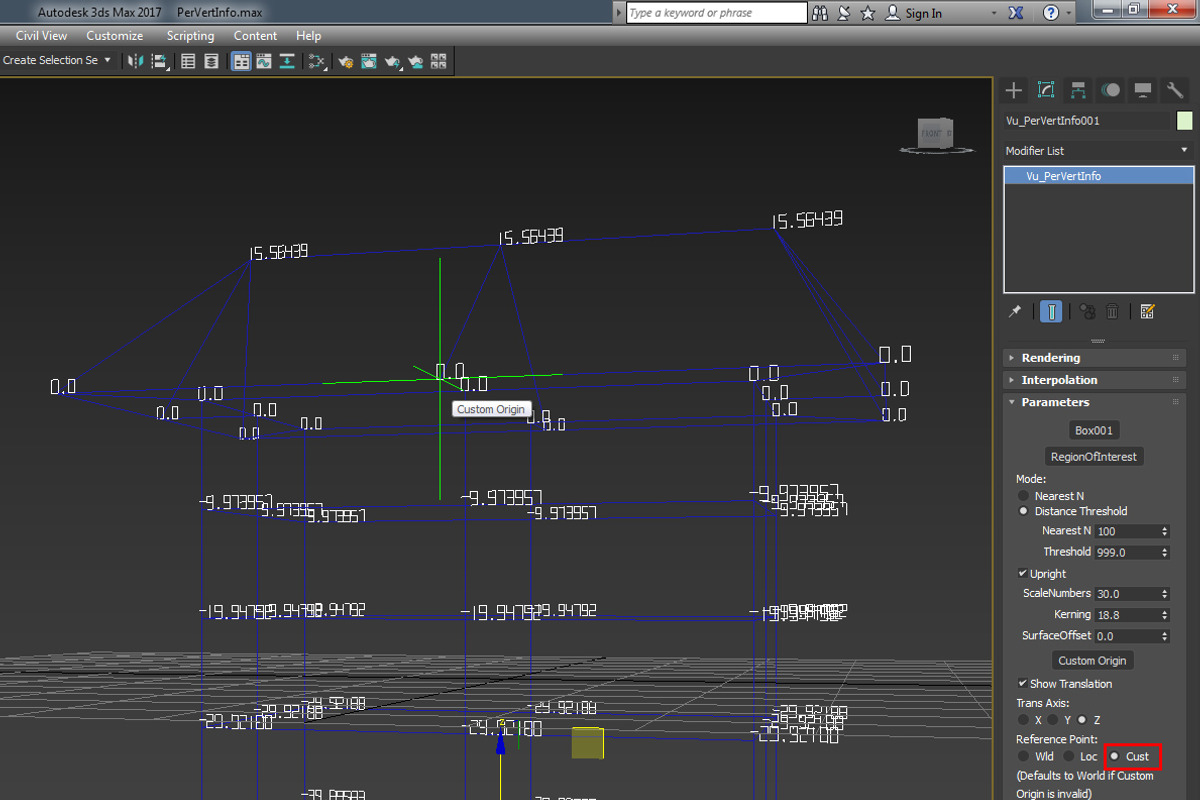

This MCG displays your Mesh Vertex ID and positional info. There are 3 coord modes, World Origin, Local (Mesh Pivot) and Custom Origin.

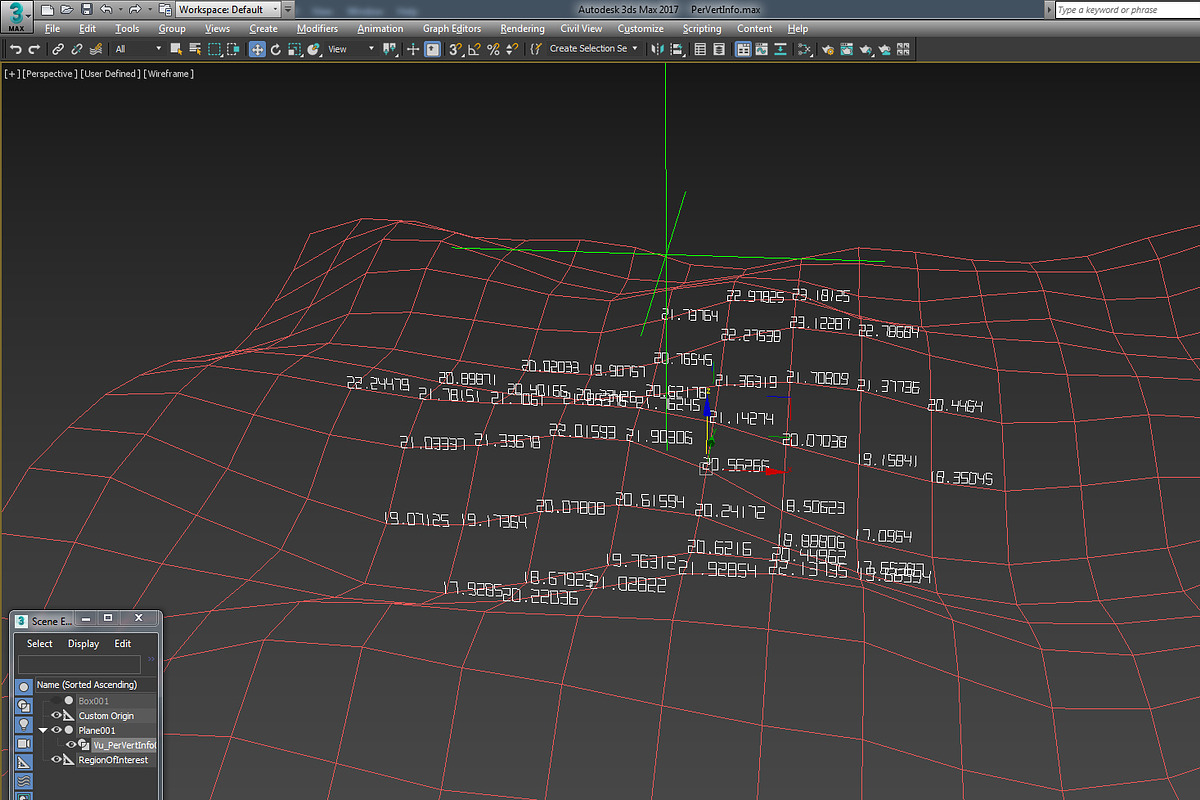

For dense mesh , you can isolate Region of Interest to display only a selection of verts.

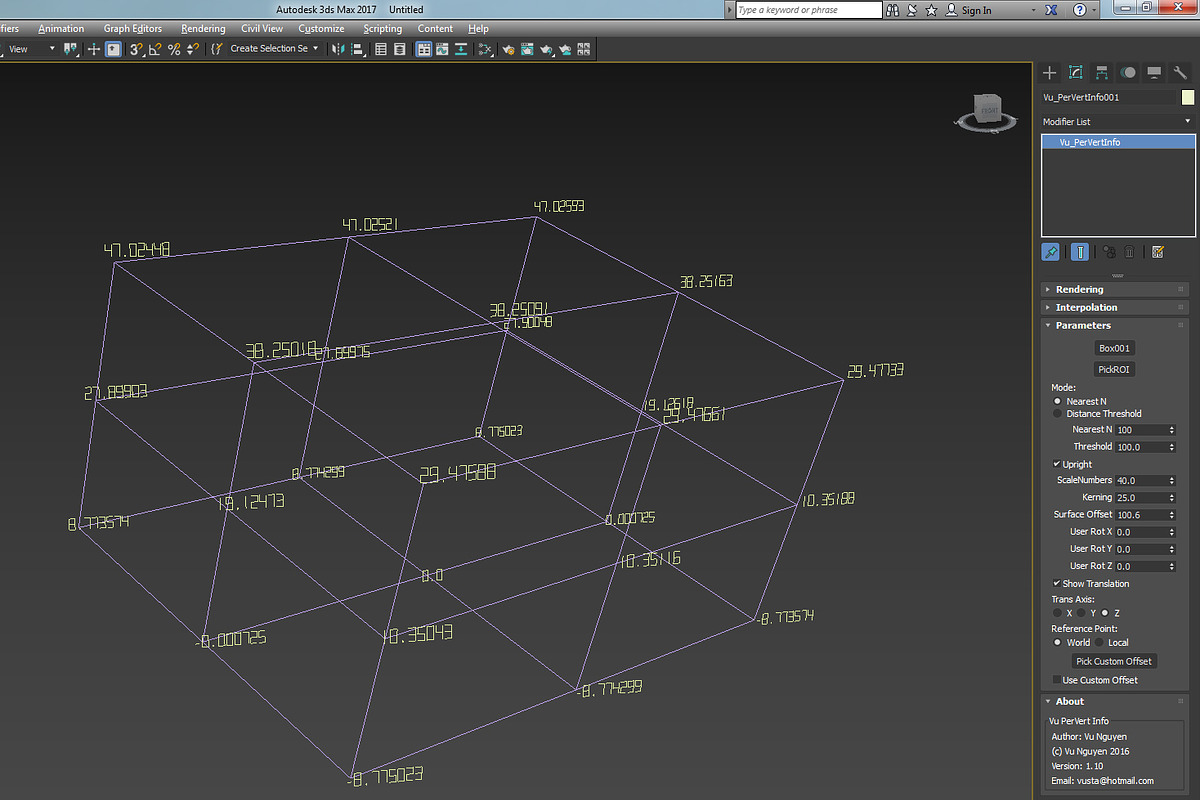

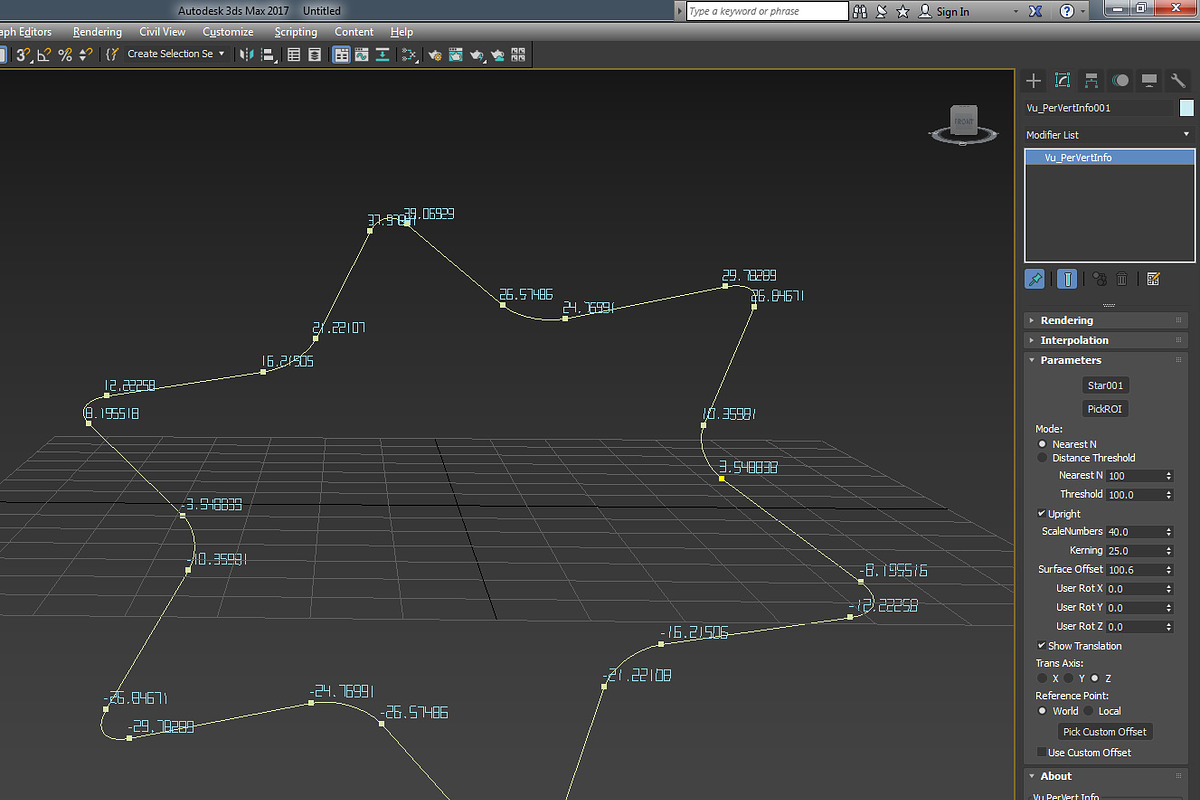

Update Ver 1.10: Now works with Splines. I have also removed the Custom mode. So there are 2 coord systems, World and Local (Mesh/Spline Pivot) and in each mode you can use a Custom Offset.
- Fixed whole number display bug
- Fixed object rotation not updating info
Please note the new workflow is to move the PerVertInfo to World Origin and do not link to the Mesh.
https://www.youtube.com/watch?v=O9onr_6IPO4
Update Ver 1.11: Now can specify Float Precision up to 5 decimal places. https://www.youtube.com/watch?v=u_nf1MJ4DQY
Update Ver 1.20:
- Fixed bug when 'typing' in Transforms, info not updating. There is one small compromise, you get maximum 4 decimal places now instead of 5.
- Added User Offsets in case of displays overlapping the geometry lines.

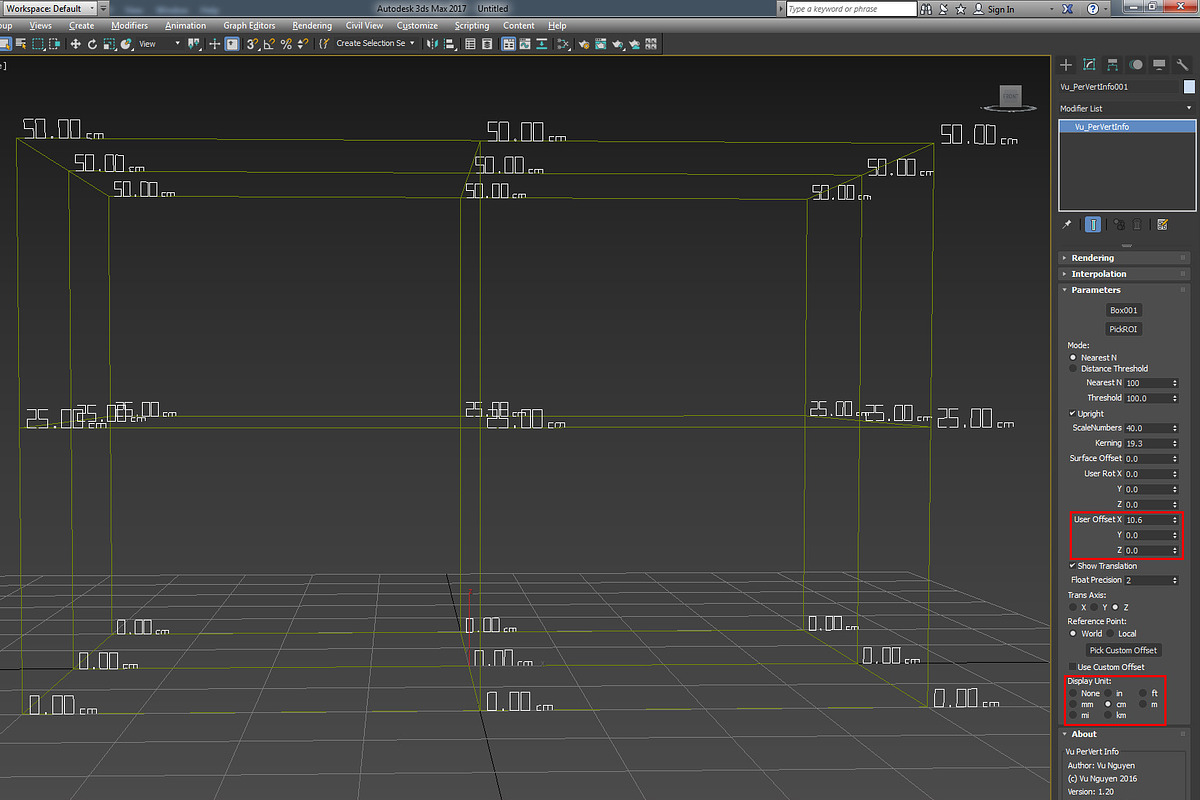

- Added Unit Display, this is a 'bonus' from my free EdgeLengthDisplay MCG...(so I hope you won't complain about my display of feet Unit)
